Engine Ignition Components - Exploded View

WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

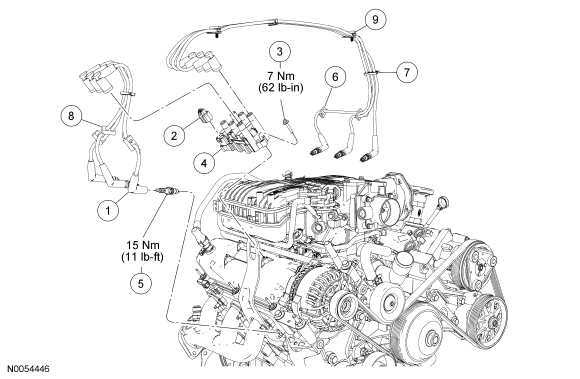

Fig 1: Exploded View Of Engine Ignition Components
GF0002886Courtesy of FORD MOTOR CO.
Item Part Number Description
1 12286 Spark plug wire (6 required)
2 14A464 Ignition coil electrical connector
3 W708622 Ignition coil bolts (3 required)
4 12029 Ignition coil
5 12405 Spark plugs (6 required)
6 12297 Spark plug wire-to-valve cover retainers (4 required)
7 12297 Spark plug wire separators
8 12297 Spark plug wire separator
9 12297 Spark plug wire-to-intake manifold retainers
  1. For additional information, refer to the procedures in this article.
