Transaxle Support Insulator: Installation

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Clean the rear transaxle mount bolts using a wire brush and apply new threadlock to the threads.
Position the transaxle mount in place and install the 2 lower bolts.
- Tighten to 62 Nm (46 lb-ft).

  Fig 1: Locating Transaxle Mount Bolts
  Courtesy of FORD MOTOR CO.
Position the LH front structure-to-subframe splash shield in place and install the 6 pin-type retainers.

Fig 2: Locating LH Front Structure-To-Subframe Splash Shield
Courtesy of FORD MOTOR CO.
Position the LH splash shield in place and install the 4 screws.

Fig 3: Locating Splash Shield Screws
Courtesy of FORD MOTOR CO.
Install the 2 upper bolts.
- Tighten to 62 Nm (46 lb-ft).

  Fig 4: Locating Transaxle Insulator Bolts
  Courtesy of FORD MOTOR CO.
Install the 2 transmission insulator bolts.
- Tighten to 90 Nm (66 lb-ft).

  Fig 5: Locating Transaxle Insulator Bolts
  Courtesy of FORD MOTOR CO.
Remove the special tools.

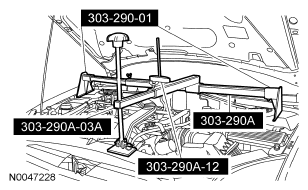

Fig 6: Identifying Special Tool
Courtesy of FORD MOTOR CO.
Install the battery and battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
