WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
Freestyle, Five Hundred

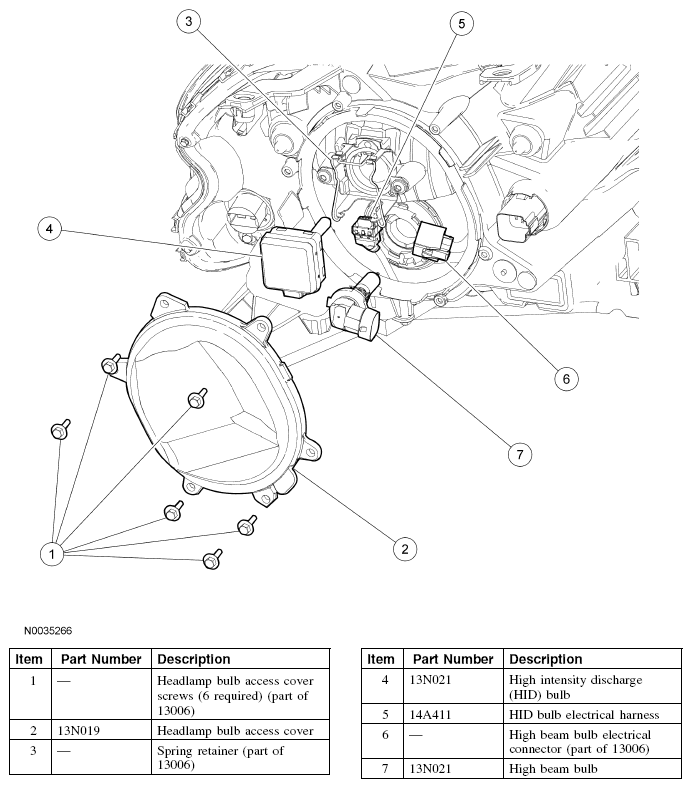

Fig 1: Identifying Headlamp Bulb Components - Five Hundred
