Side Impact Sensor - First Row, B-Pillar: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Front safety belt retractor anchor bolt and belt are removed for clarity.

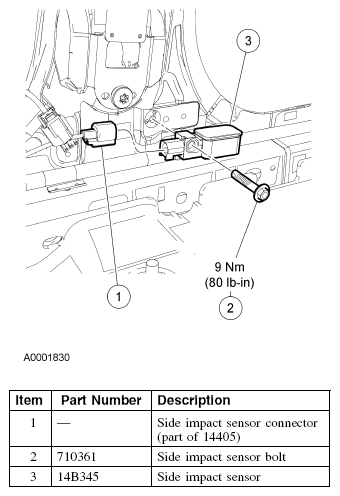

Fig 1: Side Impact Sensor Replacement Components - First Row, B-Pillar With Torque Specifications
G04622868Courtesy of FORD MOTOR CO.
