Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine coolant. For additional information, refer to ENGINE COOLING .
Remove the nuts and position the vapor management valve (VMV) aside.

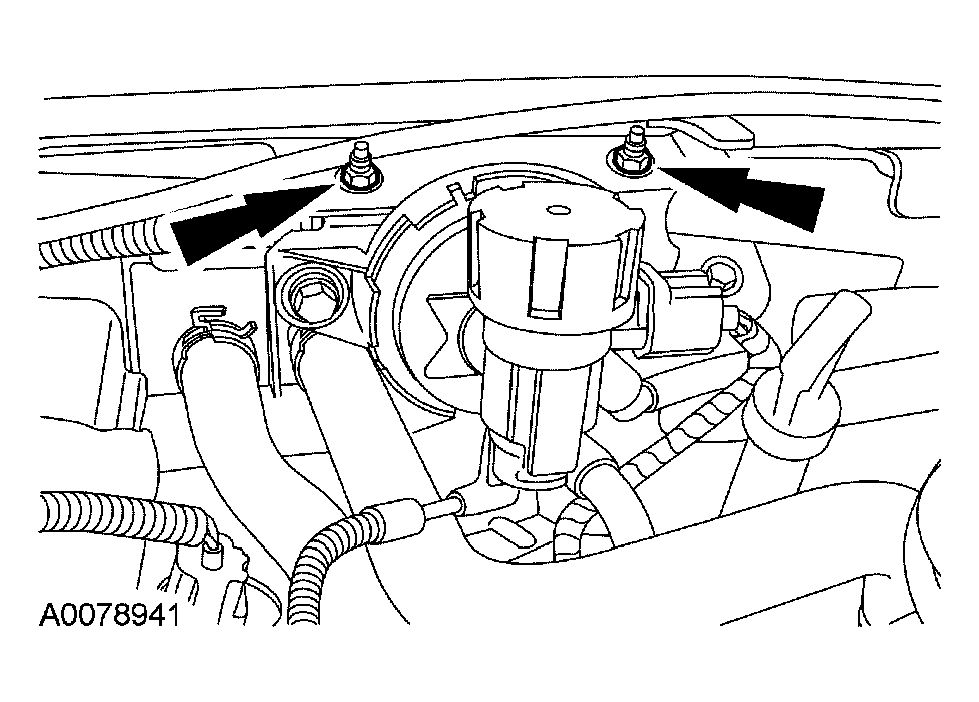

Fig 1: Removing Vapor Management Valve
Courtesy of FORD MOTOR CO.
Release the clamps and disconnect the heater hoses from the heater core.

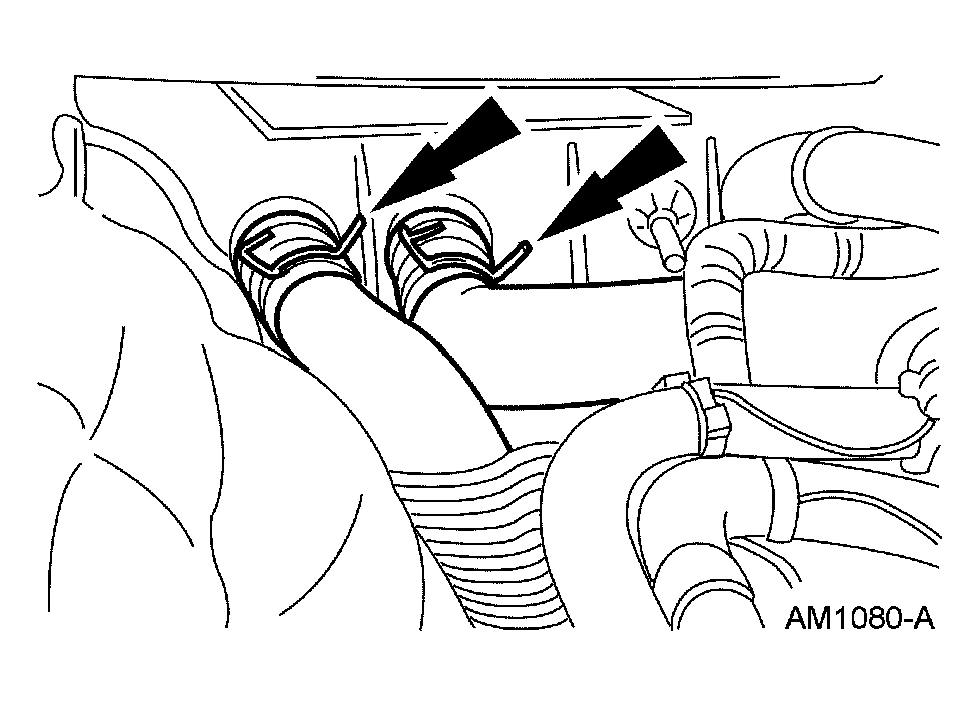

Fig 2: Disconnecting Heater Hoses
Courtesy of FORD MOTOR CO.
Release the clamp and remove the heater hose.

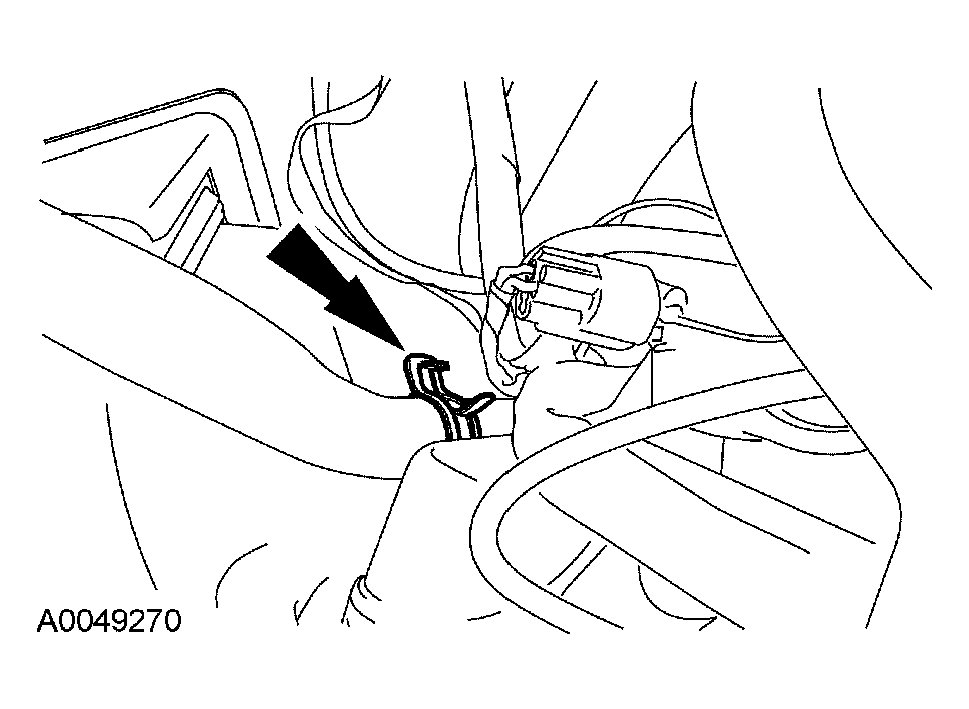

Fig 3: Removing Clamp And Heater Hose
Courtesy of FORD MOTOR CO.
Remove the blower motor speed control.
1. Disconnect the blower motor speed control electrical connector.
2. Remove the 2 blower motor speed control screws.
3. Remove the blower motor speed control.

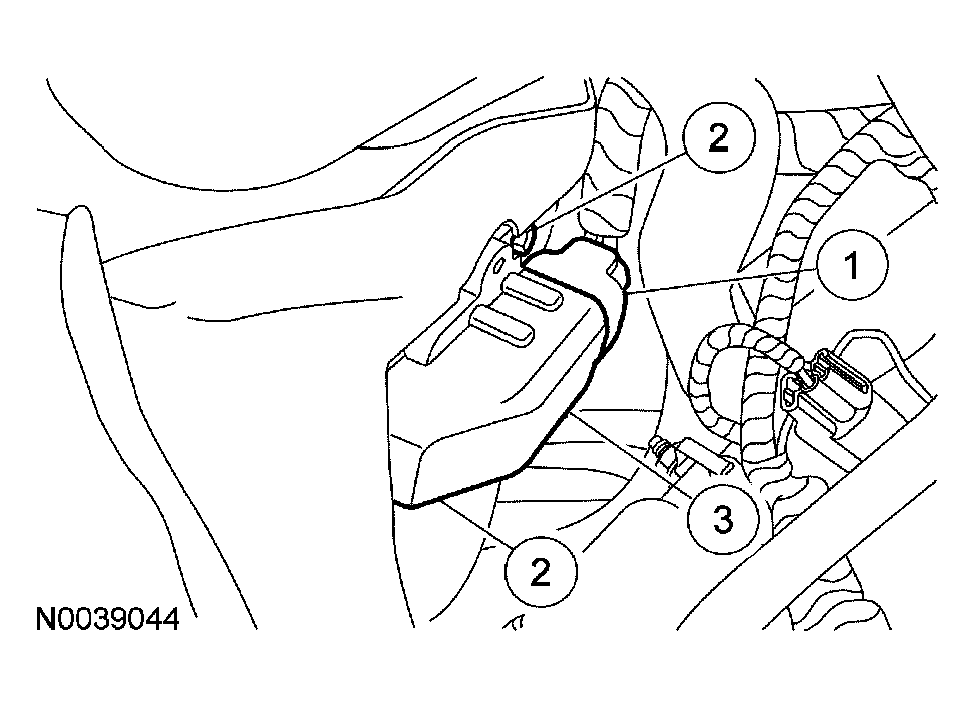

  Fig 4: Removing Blower Motor Speed Control
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
