Coolant Pump: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL

Item Specification
Motorcraft Premium Gold Engine Coolant VC-7-A (in California, Oregon and New Mexico VC-7-B, in Canada CVC-7-A) or equivalent (yellow color) WSS-M97B51-A1

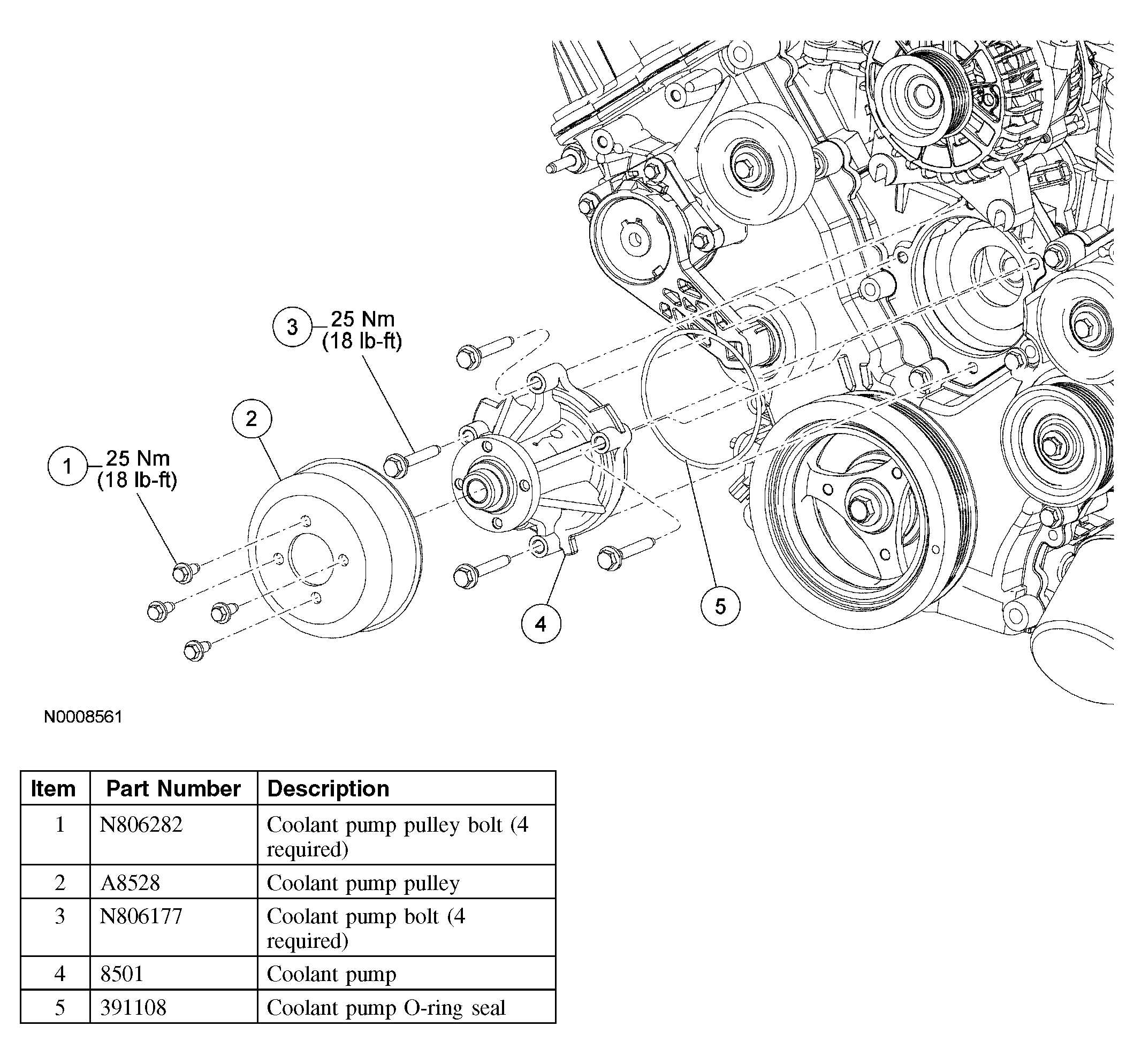

Fig 1: Removing/Installing Coolant Pump
G04584074Courtesy of FORD MOTOR CO.
