Incorrect thrust angle (dogtracking)

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

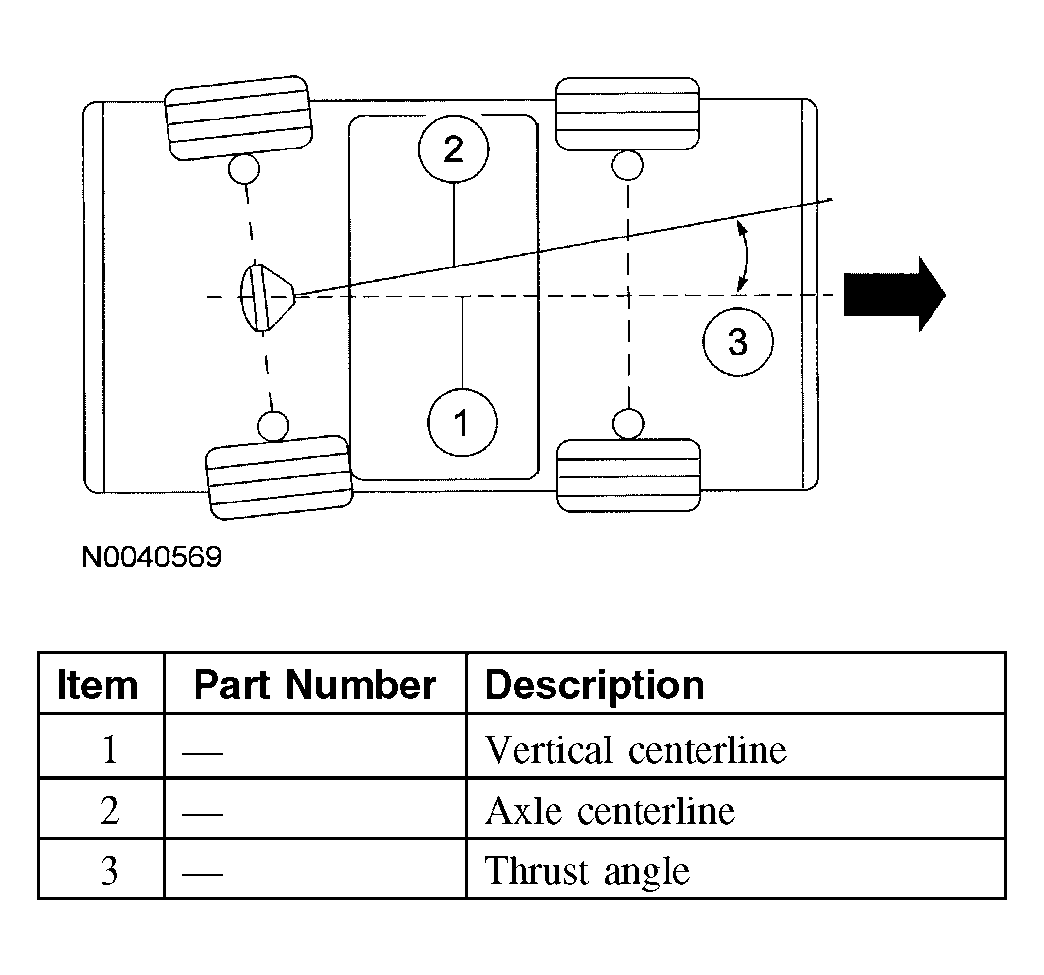

Fig 1: Locating Incorrect Thrust Angle (Dogtracking)
G04582699Courtesy of FORD MOTOR CO.

Incorrect thrust angle (dogtracking) is the condition in which the rear axle is not square to the chassis. Heavily crowned roads can give the illusion of dogtracking.
