Removal and Installation

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the memory SET switch bezel tab at the top and separate from the door panel.

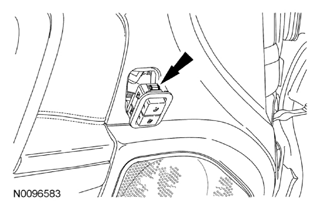

    Fig 1: Locating Memory SET Switch Bezel Tab
    G07788979Courtesy of FORD MOTOR CO.
  2. Disconnect the electrical connector, release the 4 tabs and remove the memory SET switch.
  3. To install, reverse the removal procedure.
