Seat Backrest - Front: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

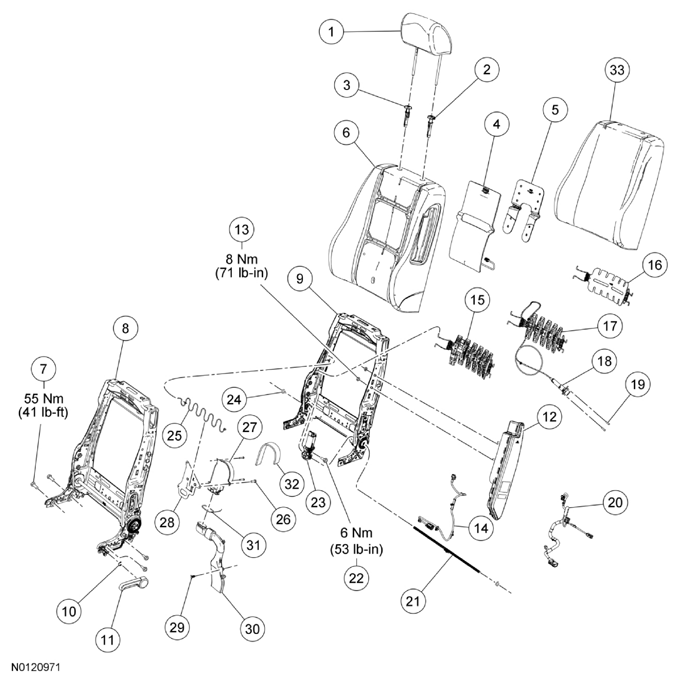

Driver backrest shown in the illustration, passenger backrest similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint |
| 2 | 610A16 | Head restraint guide (master) |
| 3 | 610A18 | Head restraint guide (slave) |
| 4 | 14D696 | Backrest heater mat (if equipped) |
| 5 | 19N550 | Backrest manifold, climate controlled seat (if equipped) |
| 6 | 64811 | Backrest foam pad |
| 7 | W500632 | Recliner-to-cushion frame bolt (4 required) |
| 8 | 61018 | Backrest frame (with manual recliner) (if equipped) |
| 9 | 608A15 | Backrest frame (with power recliner) (if equipped) |
| 10 | - | Spring clip, recliner handle (part of 61199) (if equipped) |
| 11 | 61199 | Handle, recliner (if equipped) |
| 12 | 611D11 | Side air bag module (if equipped) |
| 13 | N620480 | Nut, side air bag bracket (2 required) (if equipped) |
| 14 | 14K155 | Wiring harness, side air bag (if equipped) |
| 15 | 65500 | Lumbar assembly, power (if equipped) |
| 16 | 64842 | Lumbar assembly, static (if equipped) |
| 17 | 65500 | Lumbar assembly, manual (if equipped) |
| 18 | 610C01 | Manual lumbar control (if equipped) |
| 19 | W715704 | Rivet, manual lumbar control (2 required) (if equipped) |
| 20 | 14C693 | Wiring harness, power seat backrest (if equipped) |
| 21 | 613A68 | Recliner torque shaft |
| 22 | W790022 | Bolt, recliner motor (if equipped) |
| 23 | 14547 | Recliner motor (if equipped) |
| 24 | - | Pal nut, recliner torque shaft (2 required) |
| 25 | 64646 | Upper support spring |
| 26 | W712476 | Rivet, climate controlled seat Thermo-Electric Device (TED) (3 required) (if equipped) |
| 27 | 19N550 | TED assembly (if equipped) |
| 28 | 18D583 | Bracket, TED assembly (if equipped) |
| 29 | W790002 | Pin-type retainer |
| 30 | 18D507 | Exhaust duct, climate controlled seat TED assembly (if equipped) |
| 31 | - | Tie strap |
| 32 | - | Filter, climate controlled seat TED assembly (part of 19N550) (if equipped) |
| 33 | 64417 | Backrest trim cover |
