Without Navigation System

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

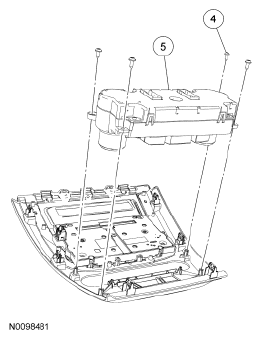

Fig 1: Identifying Heating Ventilation Air Conditioning (HVAC) Module Components (Without Navigation System)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	W506942	HVAC module screw (4 required)
5	19980	HVAC module
