Instrument Panel - Exploded View: MKZ
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

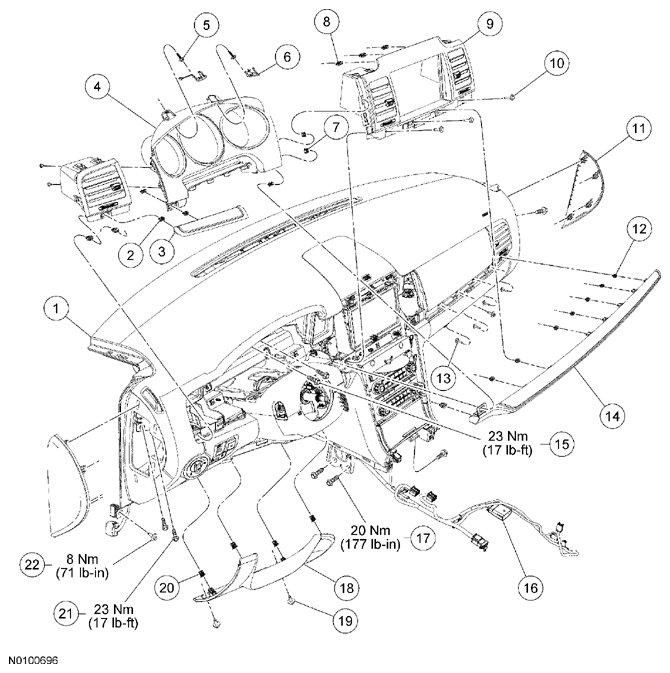

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 04320 | Instrument panel |
| 2 | - | LH instrument panel finish panel clip (part of 044A91) (2 required) |
| 3 | 044A91 | LH instrument panel finish panel |
| 4 | 044D70 | Instrument cluster finish panel |
| 5 | W707628 | Instrument cluster finish panel screw (2 required) |
| 6 | - | Instrument cluster finish panel screw cover (part of 044D70) (2 required) |
| 7 | - | Instrument cluster finish panel retaining clip (part of 044D70) (3 required) |
| 8 | - | Center instrument panel finish panel retaining clip (part of 04302) (3 required) |
| 9 | 04302 | Center instrument panel finish panel |
| 10 | W707628 | Center instrument panel finish panel screw (3 required) |
| 11 | 04480 RH/04481 LH | Instrument panel side finish panel |
| 12 | - | Instrument panel finish moulding retaining clip (part of 044A90) (8 required) |
| 13 | W707607 | Instrument panel finish moulding screw (4 required) |
| 14 | 044A90 | Instrument panel finish moulding |
| 15 | W701834 | Instrument Cluster (IC) opening bolt (2 required) |
| 16 | 14401 | Instrument panel harness connector |
| 17 | N811479 | Instrument panel center support bolt (3 required) |
| 18 | 011201 | Steering column opening trim panel |
