Rear Brake Pads: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Adapter, Rear Brake Caliper Piston Adjuster 206-026 (T87P-2588-A) or equivalent

MATERIAL

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A or WSS-M6C65-A1

NOTE: Front Wheel Drive (FWD) shown in illustration, All-Wheel Drive (AWD) similar.

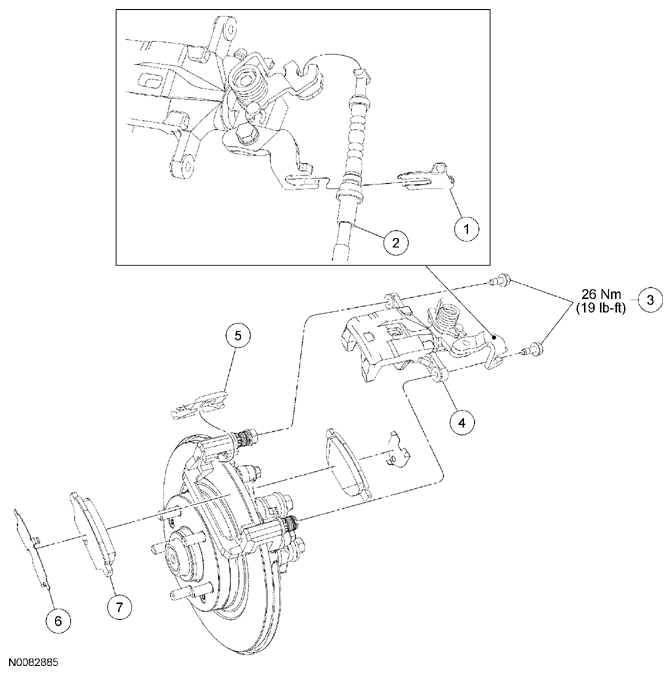

Fig 1: Exploded View Of Brake Pads Components With Torque Specifications - (Front Wheel Drive)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	2860	Parking brake cable conduit retaining clip
2	2A815	Parking brake cable
3	-	Brake caliper guide pin bolts (part of 2386)
4	2552 LH/2553 RH	Brake caliper
5	-	Brake pad slide clip (2 required) (part of 2200)
6	-	Brake pad shim (2 required) (part of 2200)
7	2200	Brake pad (2 required)
