Removal And Installation: Horn: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

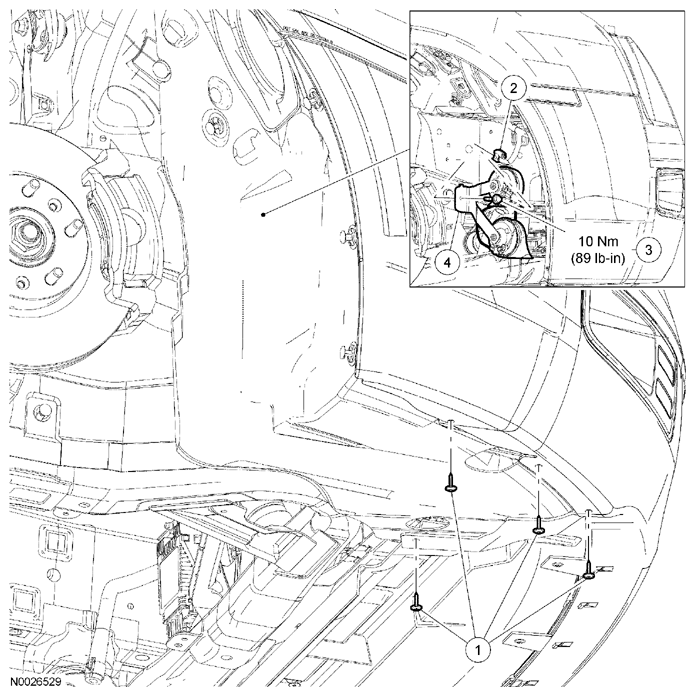

Fig 1: Horn Replacement Components With Torque Specifications
G07787365Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W706805 RH front fender splash shield screws (4 required)
2 - Horn electrical connector (part of 14290)
3 W605784 Horn bolt
4 13832 Horn
