Underbody Misalignment Check
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
- The dimensions of the underbody must be restored to provide the correct front and rear wheel alignment geometry.
- All the dimensions are measured between the centers of the existing holes in the underbody unless otherwise specified.
- Inspect all underbody structural members for cracks, twists or bends. Check all welded connections for cracks. Inspect the support brackets for looseness. Carry out any necessary repairs or install new components as necessary.

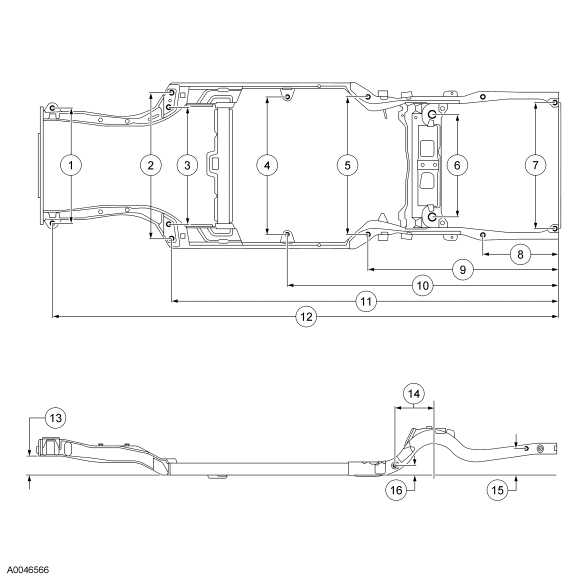

- Underbody dimension tolerances are ± 3 mm (0.12 in).UNDERBODY DIMENSIONS
Dimension Town Car/Town Car Limo Town Car LWB 1 1,040 mm
(41.6 in)1,040 mm
(41.6 in)2 1,311 mm (52.44 in) 1,311 mm (52.44 in) 3 1,052 mm (42.08 in) 1,052 mm (42.08 in) 4 1,231 mm (49.24 in) 1,231 mm (49.24 in) 5 1,226 mm (49.04 in) 1,226 mm (49.04 in) 6 1,015 mm
(40.6 in)1,015 mm
(40.6 in)7 1,120 mm
(44.8 in)1,120 mm
(44.8 in)8 473 mm
(18.92 in)473 mm
(18.92 in)9 1,563 mm (62.52 in) 1,563 mm (62.52 in) 10 2,556 mm (102.24 in) 2,747 mm (102.24 in) 11 3,635 mm (145.4 in) 3,787 mm (151.48 in) 12 4,761 mm (190.44 in) 4,913 mm (196.52 in) 13 107 mm
(4.28 in)107 mm
(4.28 in)14 355 mm
(14.2 in)355 mm
(14.2 in)15 234 mm
(9.36 in)234 mm
(9.36 in)16 81 mm (3.24 in) 81 mm (3.24 in)
