Removal & Installation: Thermostat: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

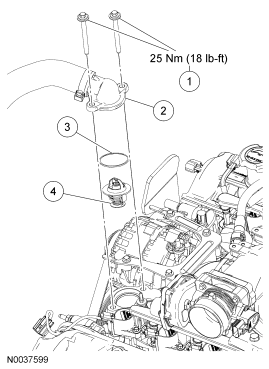

Fig 1: Exploded View Of Thermostat With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N811011	Coolant outlet adapter bolts (2 required)
2	8594	Coolant outlet adapter
3	N806807	O-ring seal
4	8575	Thermostat
