Lower Arm: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

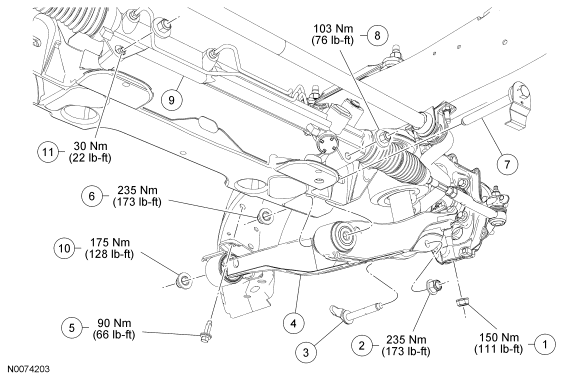

| Item | Part Number | Description |
|---|---|---|
| 1 | W710298 | Lower ball joint nut |
| 2 | W520216 | Shock absorber lower nut |
| 3 | 3C177 | Shock absorber lower flag bolt |
| 4 | 3042 RH/ 3051 LH | Lower arm |
| 5 | W708601 | Lower arm bushing bracket bolt (3 required) |
| 6 | W708329 | Lower arm cam bolt nut |
| 7 | 3C289 | Lower arm cam bolt |
| 8 | W707492 | Steering gear nut (2 required) |
| 9 | 3504 | Steering gear |
| 10 | W710430 | Lower arm bushing nut |
| 11 | W707972 | Steering gear stud (2 required) |
