Inline Connector End View - C511

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

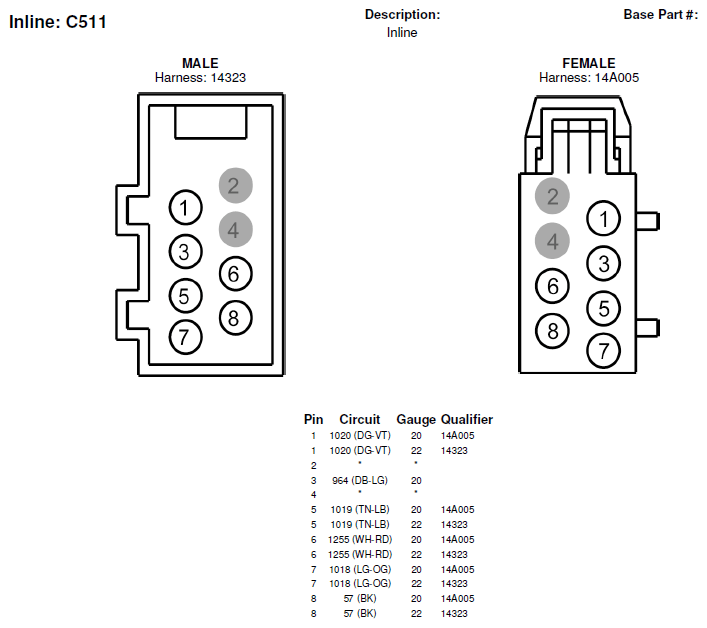

Fig 1: Inline Connector End View (C511)
G06414243Courtesy of FORD MOTOR CO.
