Blower Motor Speed Control Connector - C1308

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

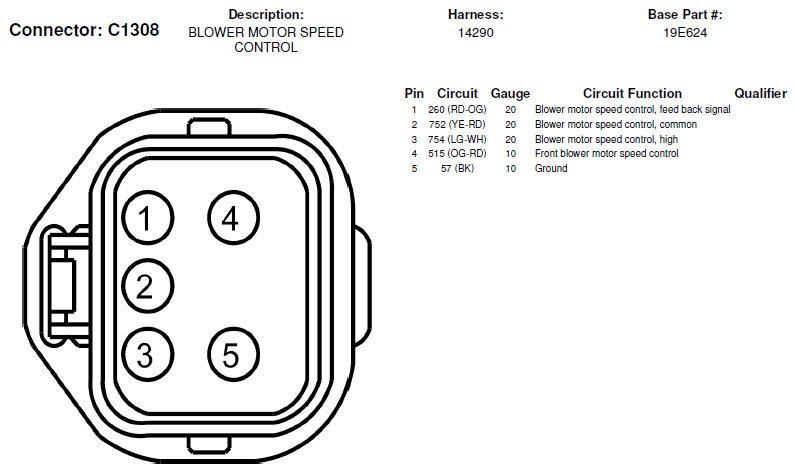

Fig 1: Blower Motor Speed Control Connector End View (C1308)
G06414330Courtesy of FORD MOTOR CO.
