Seat Backrest - Front: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

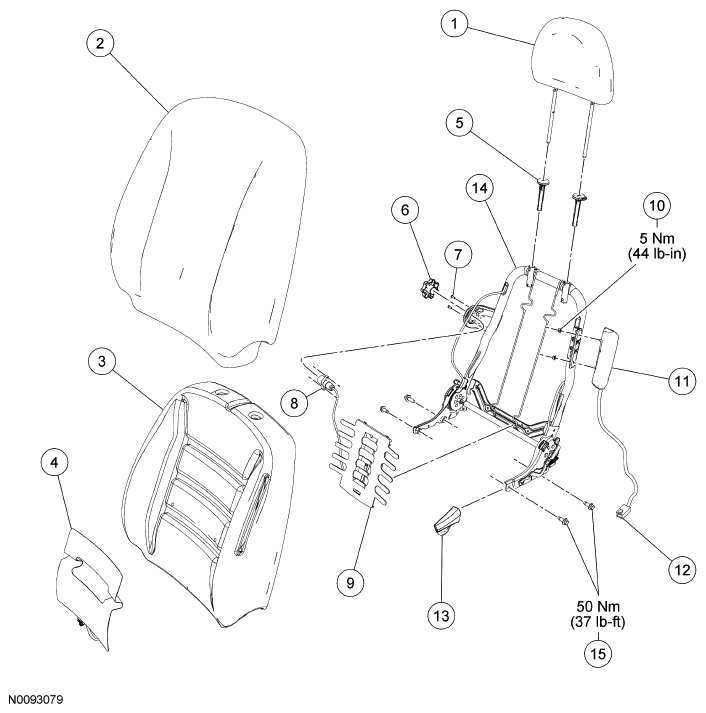

Driver seat shown, passenger similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint |
| 2 | 64417 | Backrest cover |
| 3 | 64811 | Foam pad |
| 4 | - | Heater mat (if equipped) (part of 64811) |
| 5 | 610A16 | Head restraint guide (2 required) |
| 6 | 62622 | Lumbar adjust knob (if equipped) |
| 7 | - | Lumbar adjuster screw (if equipped) (2 required) |
| 8 | - | Lumbar adjuster (part of 65500) (if equipped) |
| 9 | 65500 | Lumbar assembly (if equipped) |
| 10 | W520111 | Side air bag module nut (2 required) |
| 11 | 611D11 | Side air bag module |
| 12 | - | Side air bag wiring harness |
| 13 | 61736 | Recliner handle |
| 14 | - | Backrest frame |
| 15 | 611B40 | Backrest frame-to-seat track bolts (4 required) |
