Stabilizer Bar: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

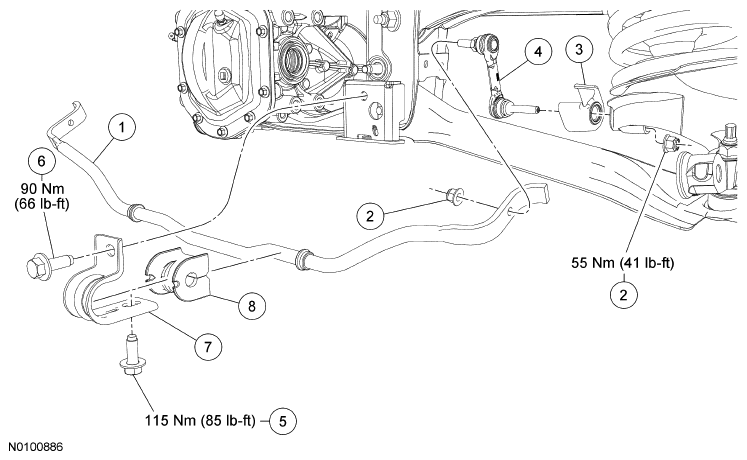

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 5A772 | Stabilizer bar |
| 2 | W520213 | Stabilizer bar link nuts (2 required) |
| 3 | - | Stabilizer bar link shield (part of 5K484) (2 required) |
| 4 | 5K484 | Stabilizer bar link (2 required) |
| 5 | N811530 | Stabilizer bar bracket lower bolt (4 required) |
| 6 | N811530 | Stabilizer bar bracket upper bolt (4 required) |
| 7 | 5B484 | Stabilizer bar bracket (2 required) |
| 8 | 4A037 | Stabilizer bar bushing (2 required) |
