Lower Arm: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

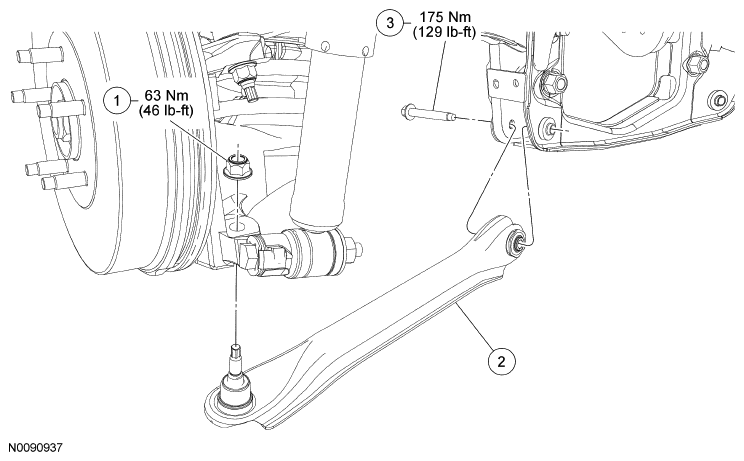

Fig 1: Lower Arm Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	W705606	Lower ball joint nut
2	5B675 LH/5B674 RH	Lower arm
3	W713307	Lower arm inner bolt
