Side Obstacle Detection (SOD) Module: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

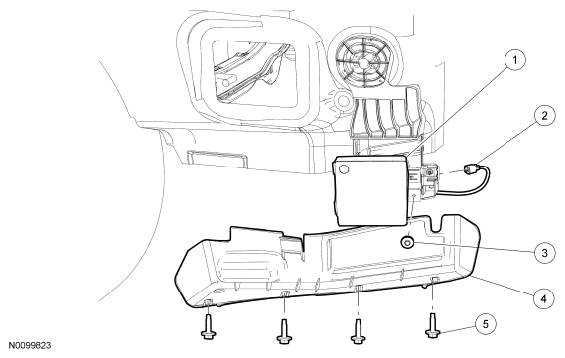

NOTE:
Rear bumper cover removed for clarity.
NOTE:
Left rear quarter panel shown in illustration, right side similar.
PARTS DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 14C689 | Side Obstacle Detection Control Module - Left (SOD-L)/Side Obstacle Detection Control Module - Right (SOD-R) |
| 2 | - | SOD-L /SOD-R electrical connector (part of 15K868) |
| 3 | W705796 | SOD-L /SOD-R screw and washer |
| 4 | - | Lower rear bumper quarter panel splash shield |
| 5 | - | Lower rear bumper quarter panel splash shield screws (4 required) |
