Vehicle Speed Sensor (VSS): Material

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION TABLE

Item	Specification
SAE 75W-90 API GL-4 Gear Oil XT-4-QGL	WSS-M2C203-A1

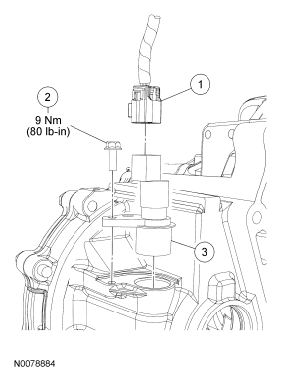

Fig 1: Vehicle Speed Sensor Electrical Connector With Torque Specifications

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE TABLE

Item	Part Number	Description
1	14487	Vehicle Speed Sensor (VSS) electrical connector
2	-	VSS bolt
3	17271	VSS
