Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATION TABLE
| Adapter Set, Step Plate 205-DS011 (D80L-630-A) or equivalent | |
| Bearing Puller 205-D064 (D84L-1123-A) or equivalent | |
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-A) | |
| Installer, Differential Bearing Cup 308-162 (T88C-77000-EH) | |
| Push/Puller Set 205-DS023 (D80L-927-A) or equivalent |

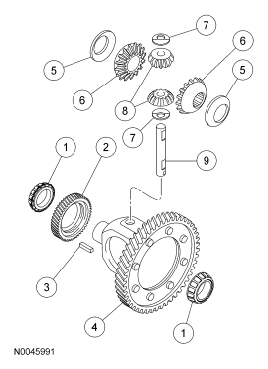

PART NUMBER REFERENCE TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 4221 | Differential bearings |
| 2 | 17285 | Speedometer drive gear |
| 3 | 4241 | Differential pinion shaft lock pin |
| 4 | 4026 | Differential |
| 5 | 4228 | Differential side gear thrust washers |
| 6 | 4236 | Differential side gears |
| 7 | 4230 | Differential pinion gear thrust washers |
| 8 | 4215 | Differential pinion gears |
| 9 | 4211 | Differential pinion shaft |
