Console - Floor, MKZ: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

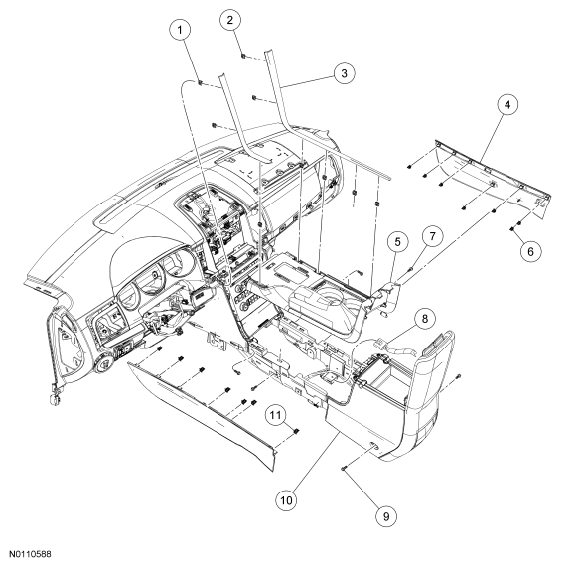

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | LH floor console finish molding retaining clip (part of 061A16) (3 required) |
| 2 | - | RH floor console finish molding retaining clip (part of 061A16) (6 required) |
| 3 | 061A16 | Floor console finish molding |
| 4 | 1181081 | Floor console lower trim panel |
| 5 | 045A76 | Floor console finish panel |
| 6 | - | RH floor console lower trim panel retaining clip (part of 1181081) (7 required) |
| 7 | W709955 | Floor console front screw (4 required) |
| 8 | 14401 | Bulkhead electrical connector |
| 9 | W711401 | Floor console rear screw (2 required) |
| 10 | 04620 | Floor console |
| 11 | - | LH floor console lower trim panel retaining clip (part of 1181081) (7 required) |
