Powertrain Control Module (PCM): Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

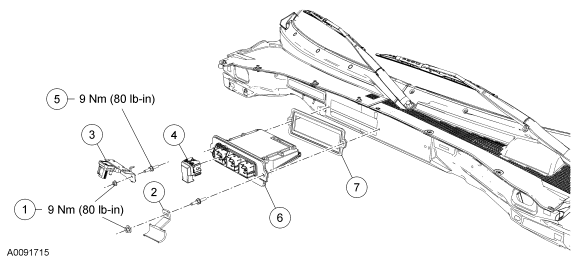

| Item | Part Number | Description |
|---|---|---|
| 1 | W500412 | PCM-to-dash stud bolt nuts (2 required) |
| 2 | 13A506 | Wiring harness retainer (part of 12B637) |
| 3 | 9S428 | Manifold absolute pressure (MAP) sensor and bracket |
| 4 | 14A464 | PCM electrical connector (part of 12B637) (3 required) |
| 5 | N806925 | PCM-to-cowl stud bolt (2 required) |
| 6 | 12A651 | PCM |
| 7 | 12A696 | PCM cowl seal |
