Starter Motor - 3.0L: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

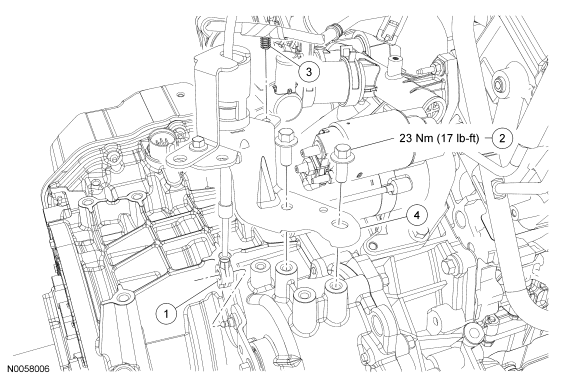

| Item |
Part Number |
Description |
| 1 |
7E395 |
Transmission shift cable-to-manual lever |
| 2 |
W500023 |
Transmission shift cable bracket bolt (2 required) |
| 3 |
- |
Wire harness retainer |
| 4 |
7B299 |
Transmission shift cable bracket |
Courtesy of FORD MOTOR CO.

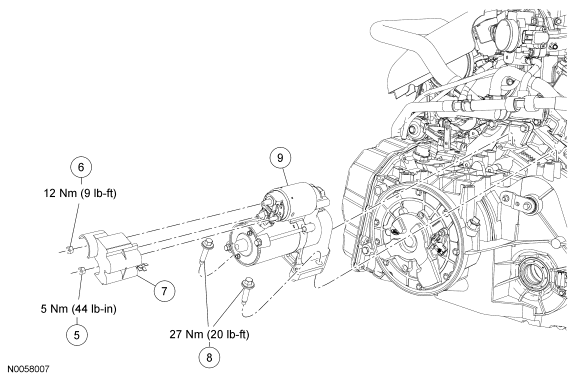

| Item |
Part Number |
Description |
| 5 |
N805320 |
Starter motor solenoid wire nut |
| 6 |
N621939 |
Starter motor solenoid battery cable nut |
| 7 |
14488 |
Starter motor solenoid wire terminal cover |
| 8 |
W500035 |
Starter motor bolts (2 required) |
| 9 |
11000 |
Starter motor |
