Rear Engine Mount: Installing

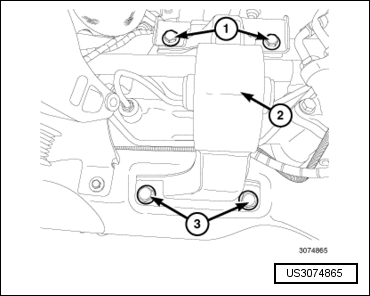

-- Install the rear mount (2). Tighten bolts (1 and 3) to 54 Nm (40 ft. lbs.).

Fig 1: Identifying Rear Mount Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the four rear mount bracket bolts (2) to 110 Nm (81 ft. lbs.).

Fig 2: Identifying Rear Engine Mount Isolator Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the rear mount through bolt (3) and tighten to 60 Nm (44 ft. lbs.).

-- Install the rear mount heat shield (2). Tighten bolts (1) to 14 Nm (124 in. lbs.).

Fig 3: Identifying Rear Engine Mount Heat Shield With Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the belly pan.
