Removal And Installation: Radio: Installing

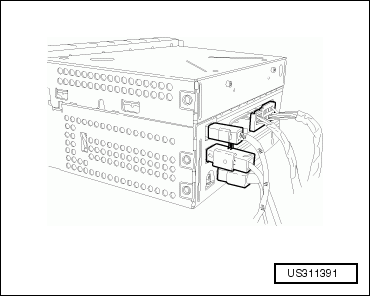

Fig 1: Identifying Electrical Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the wire connectors and antenna cables to the radio.

-- Install the radio into the instrument panel.

-- Install the mounting fasteners.

-- Install the instrument panel center bezel. Refer to Removal and Installation .

-- Connect the negative battery cable.
