Module-Intrusion Transceiver (D3851)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 175965-2

Part Description: 040 MLC II PLUG HSG

Connector No: D3851

Option: Standard

Repair Kit Part Number: 68020737AA

Cavity Count: 12

Fig 1: Module-Intrusion Transceiver Connector End View

Courtesy of CHRYSLER

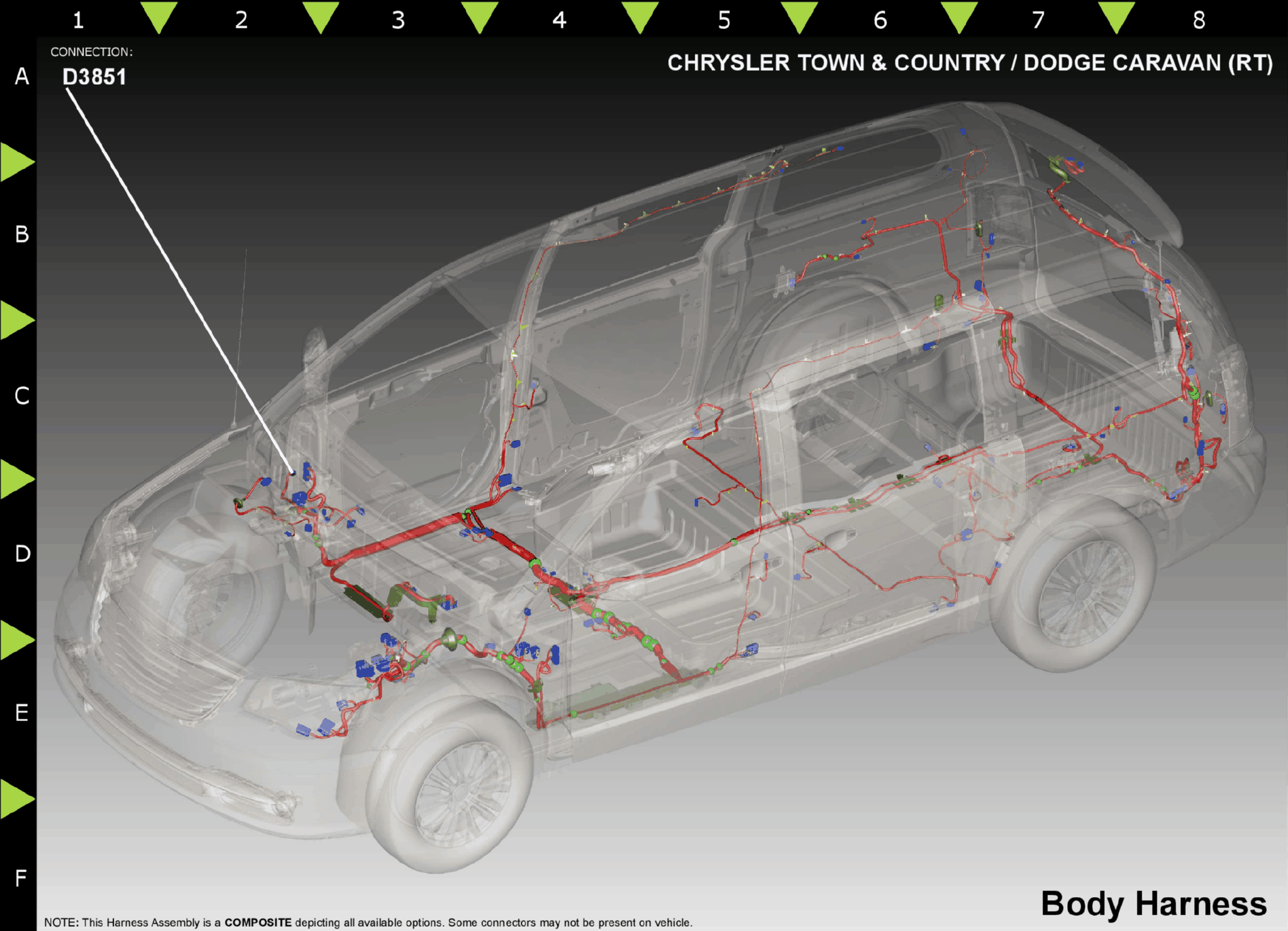

Fig 2: Module-Intrusion Transceiver Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A412

FUSED B(+)

N/A

A645

RD/VT

FUSED B(+)

N/A

G460

DG/VT

INTRUSION RECEIVER SENSOR SIGNAL

N/A

D96

WT/LB

SIREN SIGNAL CONTROL

N/A

D265

WT/GY

CAN IHS (+)

N/A

Z905

BK/YL

GROUND

N/A

G945

VT/DG

SENSOR GROUND

N/A

G946

LG/VT

SENSOR GROUND

N/A

D264

WT/OR

CAN IHS (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
