Intake Manifold Overview

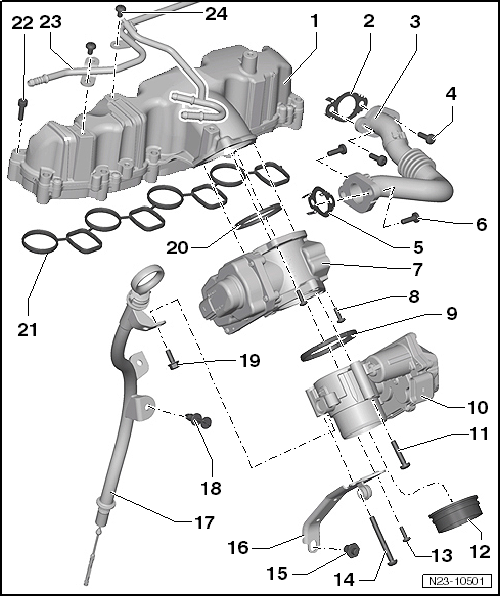

Fig 1: Identifying Intake Manifold Overview
GWWN23-10501Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Intake Manifold
  2. Gasket
    • Always replace.
  3. Connecting Pipe
    • Between the EGR Vacuum Regulator Solenoid Valve -N18- with EGR Potentiometer -G212-, cylinder head and EGR cooler.
  4. Bolt
    • 20 Nm
    • Quantity: 2.
  5. Gasket
    • Always replace.
  6. Bolt
    • 20 Nm
    • Quantity: 2.
  7. EGR Vacuum Regulator Solenoid Valve -N18- with EGR Potentiometer -G212-
    • Remove together with throttle valve control module -J338-, item - 10-.
  8. Bolt
    • 8 Nm
  9. Seal
    • Always replace.
  10. Throttle Valve Control Module -J338-
  11. Bolt
    • 10 Nm
  12. Gasket
    • Always replace.
  13. Bolt
    • 10 Nm
  14. Bolt
    • 10 Nm
  15. Stud Bolt
    • 40 Nm
  16. Support
  17. Guide Tube
    • For the oil dipstick.
  18. Clip
  19. Bolt
    • 10 Nm
  20. Seal
    • Always replace.
  21. Gasket
    • Always replace.
  22. Bolt
    • 8 Nm
  23. Fuel Return Line
  24. Bolt
    • 8 Nm
