Passenger Occupant Detection System Control Module

Passenger Occupant Detection System Control Module

Removing

- Attach the fixture for seat repair (VAS 6136) to the engine/transmission holder (VAS 6095).

Vehicles with Seat Height Adjustment

- Bring seat to the uppermost position.

All Vehicles

- Remove the front seat.

- Secure the seat on the fixture for seat repair (VAS 6136).

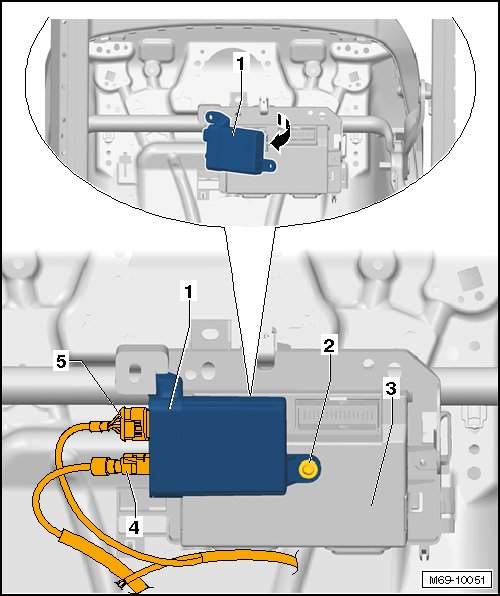

- Disconnect the connectors - 4 - and - 5 - from the passenger occupant detection system control module (J706) - 1 - => [ Disconnecting Connectors from Passenger Occupant Detection System Control Module ] Passenger Occupant Detection System Pressure Sensor.

- Remove the bolt - 2 - (1,5 Nm).

- Remove the passenger occupant detection system control module (J706) - 1 - from the bracket - 3 - in - direction of arrow -.






Installation

- Install in reverse order of removal.

• It is necessary to perform a basic setting/coding in "Guided Fault Finding" using the Vehicle Diagnosis, Testing and Information System (VAS 5051B) if the passenger occupant detection system control module (J706) was replaced. Refer to => [ Components, Adapting ] Service and Repair.
