Headrest Guide

Headrest Guide

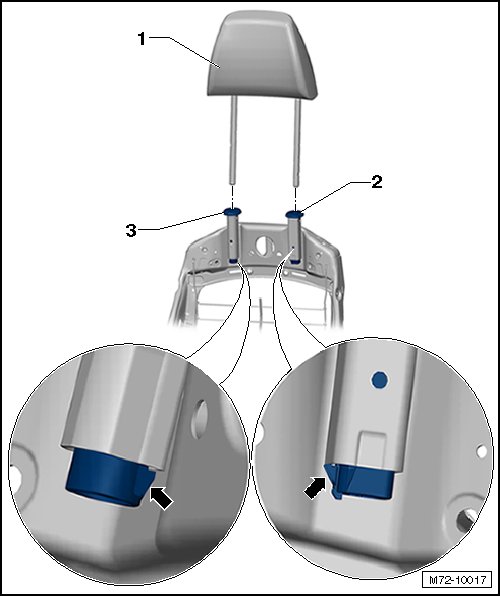

• The headrest guides are shown without the cover and cushion.

Removing

- Remove the cover and the cushion from the front seat backrest. Refer to => [ Backrest Cover and Cushion ] Backrest Cover and Cushion.

- Unlock the headrest - 1 - and pull out the headrest guides - 2 - and - 3 -.

- Open the tabs - arrows - with a screwdriver or a drift and remove the headrest guide - 2 - and - 3 - from the backrest frame.






Installation

- Install in reverse order of removal.
