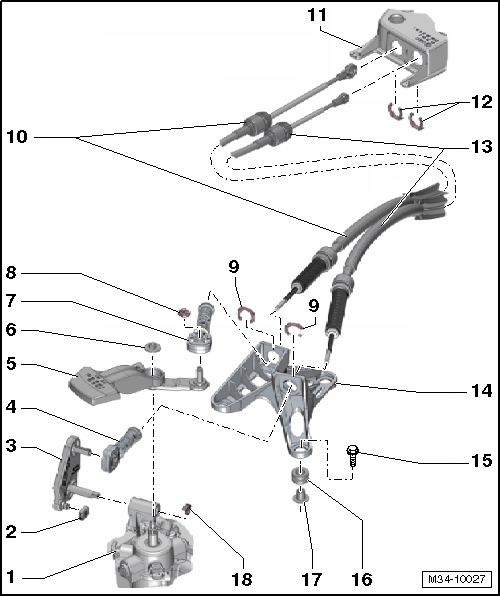

Shift And Selector Cables Overview: Notes
NOTE:
Lubricate the bearing areas and the sliding surfaces. Grease allocation.
- Gear Shift Unit
- Sliding Shoe
- Relay Lever
- Made of plastic.
- Installed position, refer to Fig 5.
- Remove and install together with the cable retainer (-item 4-).
- To install, lubricate, refer to Figure.
- Adjust the shift mechanism after installing, refer to SHIFT MECHANISM, ADJUSTING .
- On the gear shift unit, disconnecting and connecting, refer to Figure.
- Cable Retainer
- For attaching the selector cable to the relay lever.
- Adjust the shift mechanism after installing, refer to SHIFT MECHANISM, ADJUSTING .
- Do not interchange, the cable locking mechanisms for the selector cable to relay lever and the shift cable to the shift lever are different.
- Removing from the selector cable, refer to Fig 6.
- Allocation, refer to Fig 2.
- Removing from the relay lever, refer to Figure.
- Pressing onto the relay lever, refer to Figure.
- Shift Lever, Transmission
- Install so that the master spline aligns with shift shaft, refer to Fig 3.
- To install, lubricate, refer to Fig 4.
- Installed position, refer to Fig 5.
- Adjust the shift mechanism after installing, refer to SHIFT MECHANISM, ADJUSTING .
- Nut
- 23 Nm
- Replace after removing
- Self-locking
- Cable Retainer
- For attaching the shift cable to the shift lever.
- Adjust the shift mechanism after installing, refer to SHIFT MECHANISM, ADJUSTING .
- Do not interchange, the cable locking mechanisms for the selector cable to the relay lever and for the shift cable to the shift lever are different.
- Allocation, refer to Fig 2.
- Disconnect from the shift cable, refer to Fig 6.
- Lock Washer
- Removing, refer to Fig 7.
- Replace after removing
- Lock Washer
- Be careful not to damage the cables when removing them
- Replace after removing
- Selector Cable
- Attaches to the cable retainer (-item 4-).
- Installed position, refer to SHIFT AND SELECTOR CABLES, INSTALLED POSITION .
- Secured to the shift cable with a cable tie, refer to Figure.
- Removing and installing, refer to SHIFT AND SELECTOR CABLES .
- Shift Housing
- Lock Washer
- Be careful not to damage the cables when removing them
- Replace after removing
- Shift Cable
- Attaches to the cable retainer (-item 7-).
- Installed position, refer to SHIFT AND SELECTOR CABLES, INSTALLED POSITION .
- Secured to the selector cable with a cable tie, refer to Figure.
- Removing and installing, refer to SHIFT AND SELECTOR CABLES .
- Cable Bracket
- Made of plastic.
- Bolt
- 20 Nm
- Quantity: 3
- For attaching the cable bracket to the transmission
- Grommet
- Cable mounting bracket to transmission
- Quantity: 3
- Spacer
- Quantity: 3
- Clip
- For the relay lever
These holes have different diameters.
| Cable Retainer for: | Dimension "a" |
|---|---|
| -1- Shift cable to shift lever | 8.5 mm |
| -2- Selector cable to relay lever | 10 mm |
-- When positioning the transmission shift lever, make sure the tooth gap -arrow A- is placed over the missing selector shaft teeth -arrow B-.
- Lubricate the shift lever guide rail -B-, into which the relay lever engages, especially carefully.
- Grease allocation.
NOTE:
The graphic of the shift lever may differ from the original part.
1 -
Selector Lever
2 -
The relay lever fits into the sliding rail on the transmission selector lever via the sliding shoe -arrow-.
-- Pull the locking mechanism all the way forward the direction of -arrow 1- and lock it in the direction of -arrow 2-.
-- Remove the cable -B- from the cable retainer -A-.
