Brake System - Mechanical Components - Fastener Tightening Specifications

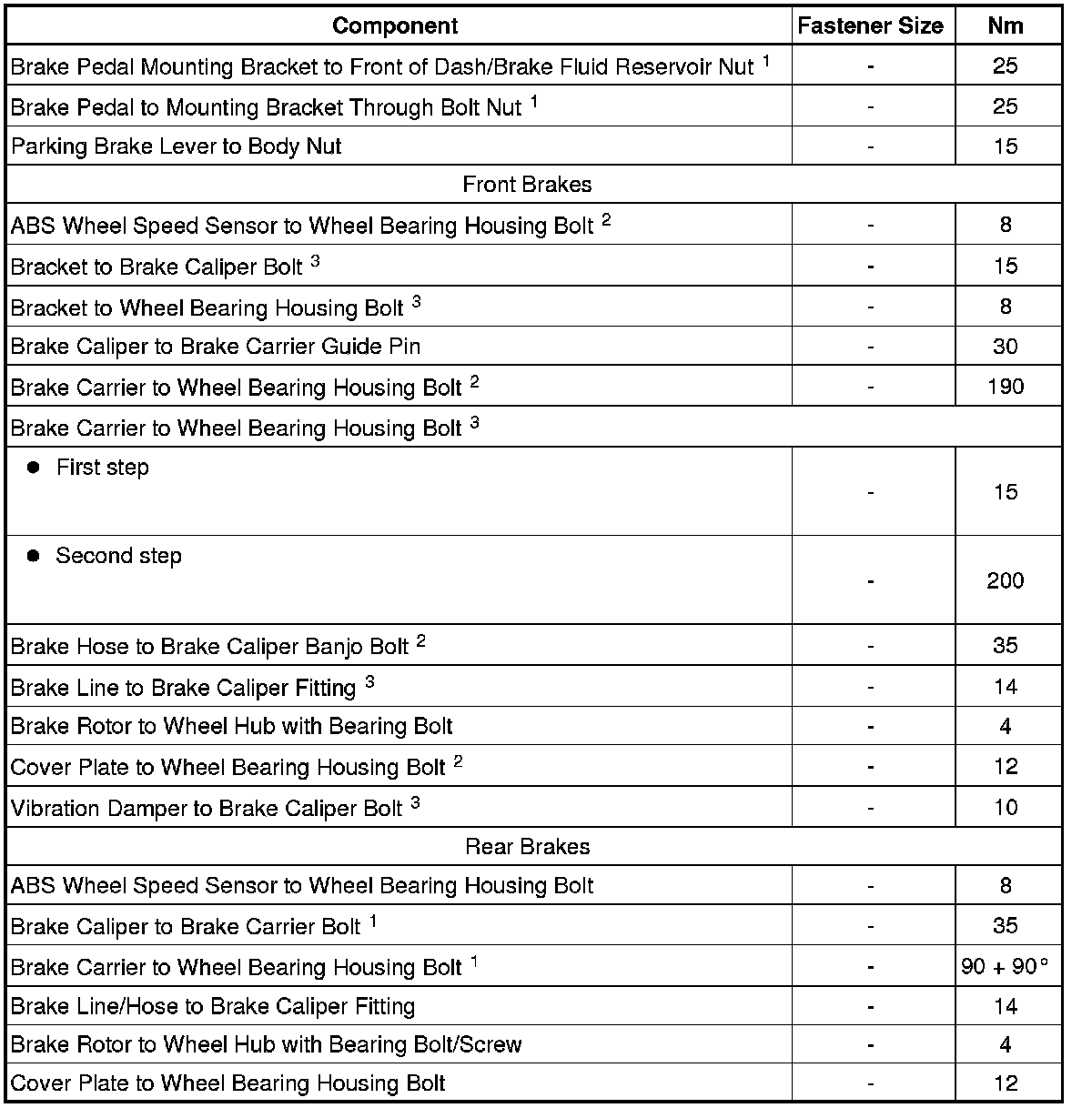

Fastener Tightening Specifications






• 1 Always replace

• 2 FN3 brakes only

• 3 FNR-G brakes only
