Relay Arrangements On Electronics Box High







Relay

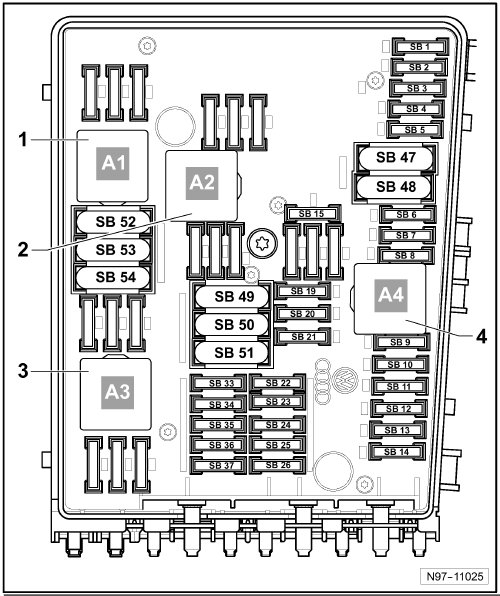

Relay Arrangements on Electronics Box High



Note:
• E-box high - only models with engine codes CDLC, CDLF






1 Motronic engine control module power supply relay -J271-
• Connection A1
2 Auxiliary coolant pump relay -J496-
• Connection A2
3 Not used
• Connection A3
4 Engine component current supply relay -J757- (167)
• Connection A4
