Check Valve, Checking

Check Valve, Checking

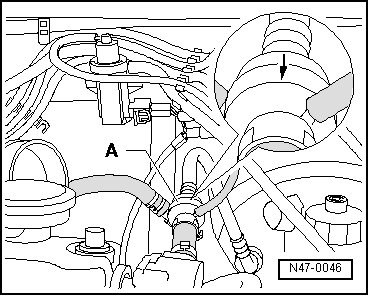

• The check valve - A - must allow air through in the - direction of the arrow -.

• The check valve must remain closed for the opposite direction.

Observe the correct installed position!
