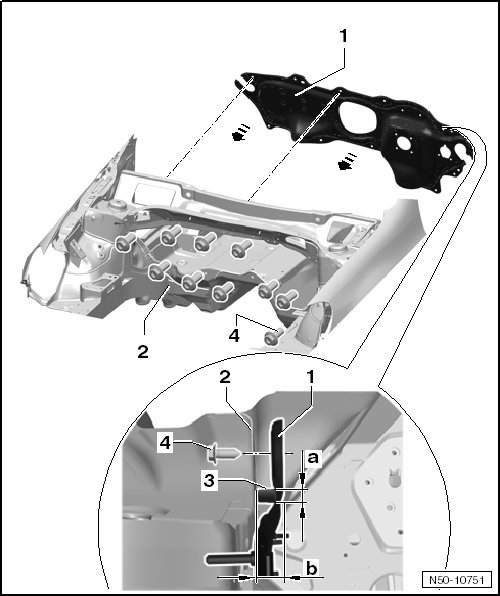

Bulkhead Overview

Bulkhead Overview

• The bulkhead - 1 - is bolted and also bonded in with PUR adhesive sealing material - 3 -.






1 Bulkhead

• Removing:

- Cut through the bead of adhesive - 3 - after removing the screws - 2 -.

2 Body Flange

3 PUR Adhesive Sealant

• DH 009 100 03

• Bead diameter: width = 8 mm, height = 10 mm

• Minimum curing time, refer to => [ Minimum Curing Time ] Minimum Curing Time.

4 Bolt

• Tightening specification: 25 Nm

• Quantity: 10
