Interior Monitoring Transceiver Module 1 (G303)

Interior Monitoring Transceiver Module 1 (G303)

Removal

• To remove the interior monitoring transceiver module 1, the anti-theft alarm system must be deactivated. Refer to=> [ Anti-Theft Alarm System, Activating and Deactivating, Through 05.11 ] Anti-Theft Alarm System, Activating and Deactivating, Through 05.11.

- Switch off the ignition and all electrical consumers and remove the ignition key.

- Remove the center console.

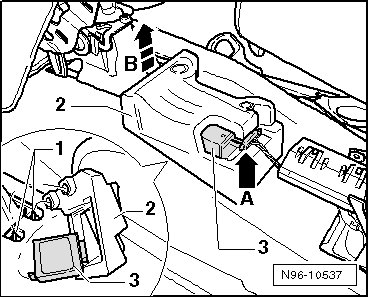

- Release and disconnect the harness connector - arrow A -.






- Pull the molded part - 2 - upward - arrow B - off of the stud bolt - 1 -.

- Carefully pull the interior monitoring transceiver module 1 - 3 - out of the molded part.

Installation

- Installation is performed in the reverse order of removal.
