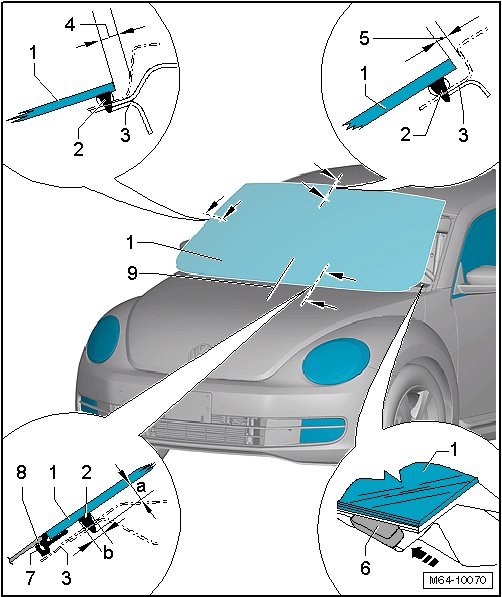

Windshield Assembly Overview

Windshield Assembly Overview






1 Windshield

• Removing, refer to => [ Windshield, Removing ] Windshield, Removing

• Installing => [ Windshield, Installing ] Windshield, Installing

2 PUR adhesive sealant

• Bead diameter: - Width b - = 6.5 mm - Height a - Height = 10 mm (including the precoating, residual material on the window and the window flange)

• Minimum curing time, refer to => [ Minimum Curing Time ] Minimum Curing Time

3 Body flange

4 Gap dimension

• Must be the same on the left and right sides

5 Gap dimension

• Must be even

6 Window adjuster

• Part number: (443 845 631 A)

7 Retainer

• Is a part of the windshield

8 Plenum chamber cover

• Must only be pulled out of binding profile by hand.

• Removing and Installing, refer to => [ Plenum Chamber Cover ] Plenum Chamber Cover

9 Adhesive bead end

• Apply the adhesive bead in this area
