Rear Heat and Fresh Air Controls

Rear Heat and Fresh Air Controls

Removing

- Disconnect the battery.

- Remove the heat and fresh air controls. Refer to => [ Front Heat and Fresh Air Controls ] Front Heat and Fresh Air Controls.

- Remove the center console. Refer to Storage Compartments, Covers and Trim.

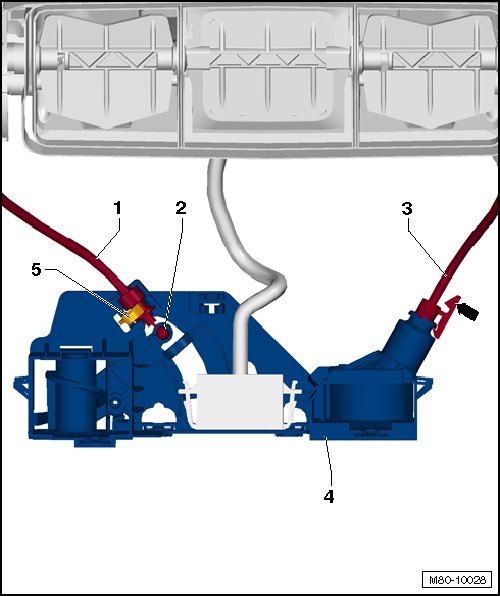

- Push the circlip - 5 - to the side and remove the release cable - 1 - from the retainer as well as the adjusting lever- 2 -.

- Release the flexible shaft- 3 - retainer - arrow - and then remove it.

- Remove the controls for the rear heat and fresh air - 4 - from the vehicle.






Installing

Install in reverse order of removal.

- Install the front heat and fresh air controls. Refer to => [ Front Heat and Fresh Air Controls ] Front Heat and Fresh Air Controls.

- Install the center console. Refer to Storage Compartments, Covers and Trim.

• After the installation perform a functional test.
