Driver door control module -J386-
-Control modules in the vehicle interior
Driver door control module -J386-
Component Location:
On front left door inner part -arrow- .
Pin Arrangements:
A - Driver door control module -J386-
Connector:

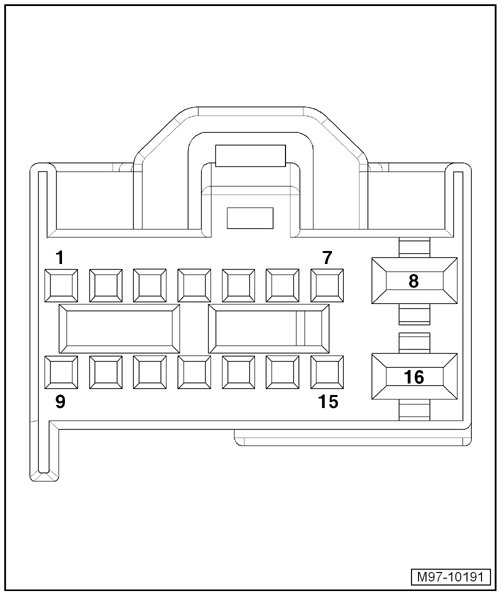

B - 16-pin connector -T16c- inside the wiring harness
1 - Not used
2 - Not used
3 - Not used
4 - Right front power window switch in driver door -E81- (T4c/4)
5 - (LIN bus) connection 1 in the main wiring harness -B528-
6 - Left front power window switch -E40- (T4c/3)
7 - Right front power window switch in driver door -E81- (T4c/4)
8 - Ground connection in the driver door wiring harness -205-
9 - Not used
10 - Not used
11 - Not used
12 - Fold-in mirror switch -E263- (T10o/8)
13 - Driver window lowering microswitch -E621- (2)
14 - Driver exterior rearview mirror folding motor -V121- (2)
15 - Driver exterior rearview mirror folding motor -V121- (1)
16 - Fuse 45 on fuse panel C -SC45-
