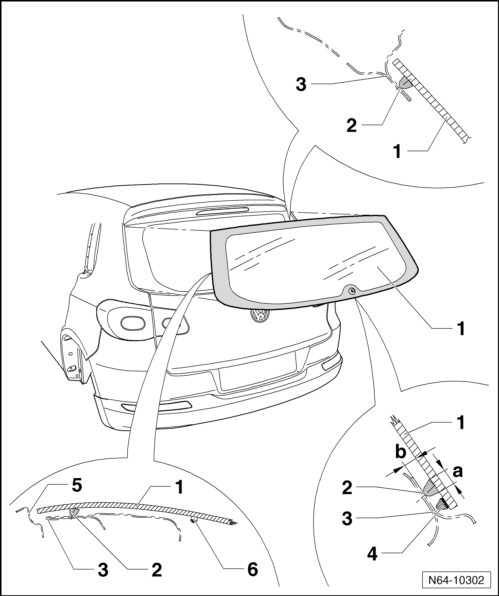

Rear Window Assembly Overview
- Rear window
- Rear Window, Removing, refer to UNDAMAGED REAR WINDOW, REMOVING
- Rear Window, Installing, refer to REAR WINDOW, INSTALLING
- PUR adhesive sealant
- Bead adhesive: Width -a- = 6.5 mm, height -b- = 10 mm (including pre-coating, residual material on window glass and window flange)
- Minimum curing time, refer to MINIMUM CURING TIME
- Rear lid
- Spacer
- Side panel
- Contact for window heater
