Module-Powertrain Control C3 (D3838C)

Harness-Family: Powertrain

Color: NATURAL

Gender: FEMALE

Part Number: 9-1326728-8

Part Description: NGC (ALL CAVITIES OPEN) - INDEX C

Connector No: D3838C

Option: Standard

Repair Kit Part Number: 05083224AA

Cavity Count: 38

Fig 1: Module-Powertrain Control C3 Connector End View

Courtesy of CHRYSLER

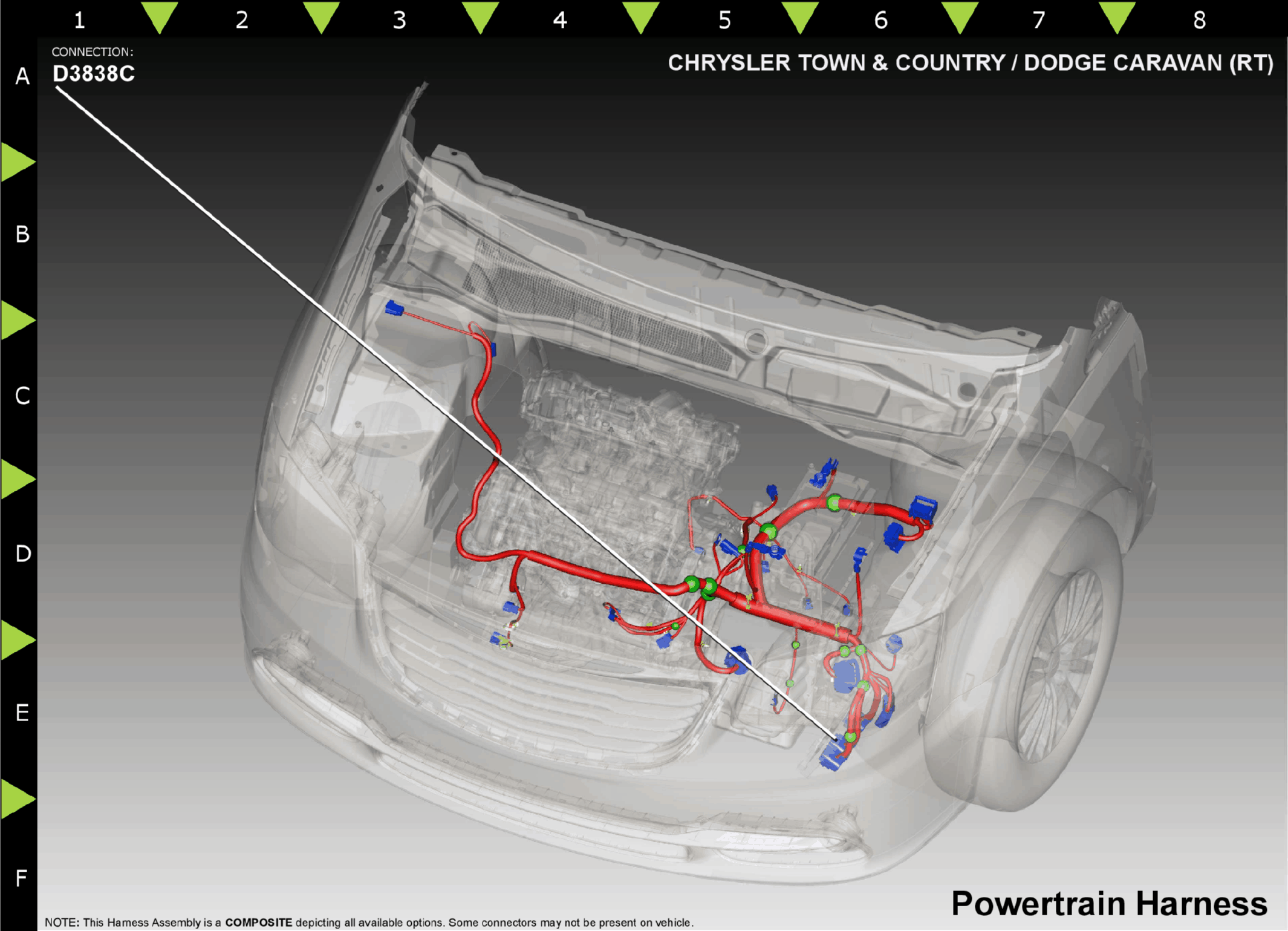

Fig 2: Module-Powertrain Control C3 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

T110

DG/YL

VACUUM PUMP RELAY CONTROL

N/A

K51

BR/WT

ASD RELAY CONTROL

N/A

K855

VT/PK

5 VOLT SUPPLY

N/A

G62

VT/YL

OIL PRESSURE SOL CONTROL

N/A

K299

BR/WT

O2 1/2 HEATER CONTROL SUPPLY

N/A

K399

BR/GY

O2 2/2 HEATER CONTROL

N/A

C13

LB/OR

A/C CLUTCH CONTROL

N/A

B16

LB/DG

BRAKE SIGNAL 2

N/A

V937

VT/BR

S/C SWITCH GROUND

N/A

K167

BR/YL

APP SENSOR GROUND 1

N/A

K400

BR/VT

APP SENSOR GROUND 2

N/A

V38

VT/OR

S/C SIGNAL 2

N/A

F342

BR/WT

ASD CONTROL OUTPUT

N/A

K52

DB/WT

EVAP PURGE CONTROL

N/A

B15

DG/WT

BRAKE SIGNAL 1

N/A

K23

BR/WT

APP SIGNAL 1

N/A

T44

YL/DG

AUTOSTICK DOWNSHIFT SIGNAL

N/A

DG/YL

AUTOSTICK UPSHIFT SIGNAL

N/A

F342

BR/WT

ASD CONTROL OUTPUT

N/A

K70

DB/BR

EVAP PURGE SOL SIGNAL

N/A

G224

VT/YL

EOT SIGNAL

N/A

V37

S/C SIGNAL 1

N/A

K107

VT/WT

ESM SIGNAL

N/A

K29

WT/BR

APP SIGNAL 2

N/A

K31

FUEL PUMP CONTROL

N/A

T752

DG/OR

STARTER RELAY CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
