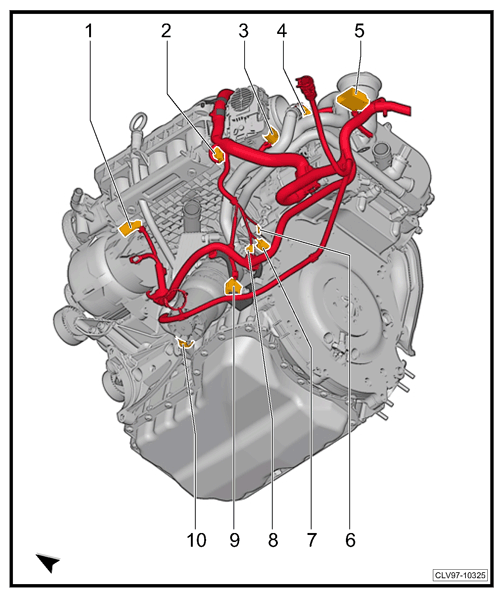

2.5L FSI, CBTA/CBUA Front
- 1 - Generator with voltage regulator -CX1-
- 2 - Intake air temperature sensor -G42-
- 2 - Manifold absolute pressure sensor -G71-
- 3 - Throttle valve control module -J338-
- 3 - EPC throttle drive -G186-
- 3 - EPC throttle drive angle sensor 2 -G188-
- 3 - Throttle position sensor -G69-
- 4 - Camshaft adjustment valve 1 -N205-
- 5 - 14-pin connector -T14-
- 6 - Oil pressure switch -F1-
- 7 - Reduced oil pressure switch -F378-
- 8 - Oil pressure regulation valve -N428-
- 9 - Engine speed sensor -G28-
- 10 - Engine preheating element -Z97-
