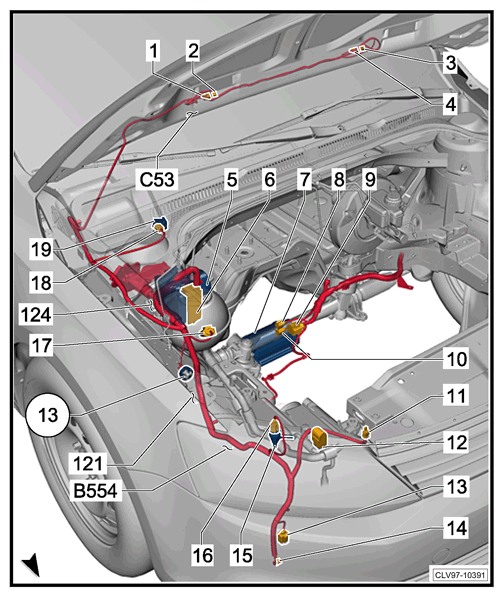

Engine Compartment, Passenger

  1. 1  - Double connector -T2bu-
  2. 2  - Right washer nozzle heater -Z21-
  3. 3  - Left washer nozzle heater -Z20-
  4. 4  - Double connector -T2bt-
  5. 5  - ABS control module -J104-
  6. 6  - 47-pin connector -T47- (Optional)
  7. 7  - Power steering control module -J500-
  8. 7  - Electromechanical power steering motor -V187-
  9. 7  - Steering angle sensor -G85-
  10. 7  - Steering torque sensor -G269-
  11. 8  - 3-pin connector -T3-
  12. 9  - Double connector -T2a-
  13. 10  - 5-pin connector -T5g-
  14. 11  - Passenger side front airbag crash sensor -G284-
  15. 12  - Right front headlamp
  16. 13  - Windshield washer pump -V5-
  17. 13  - Headlamp washer pump -V11-, located in washer reservoir.
  18. 14  - Windshield washer fluid level sensor -G33-
  19. 15  - High pressure sensor -G65-
  20. 16  - 3-pin connector -T3c-
  21. 17  - Engine coolant level sensor -G32-
  22. 18  - 3-pin connector -T3aw-
  23. 19  - Air quality sensor -G238-
  24. 13  - Ground connection in engine compartment, right
  25. 121  - Ground connection 2 (in right front wiring harness)
    G12750887Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  26. 124  - Ground connection (in right engine compartment wiring harness)
  27. B554  - Fog lamp connection (in main wiring harness)
  28. C53  - Positive connection (x) (in heated spray nozzle wiring harness)
