Headlamp Washer System, Checking Spray Nozzle Setting
CAUTION:
The spray nozzles can be checked for functionality, but they cannot be adjusted.
Spray Jet Setting, Checking
-- Turn on the low beam.
-- Operate the windshield washer.
Headlamps are washed, if windshield wiper lever is held at least 1.5 seconds in "wiping position"

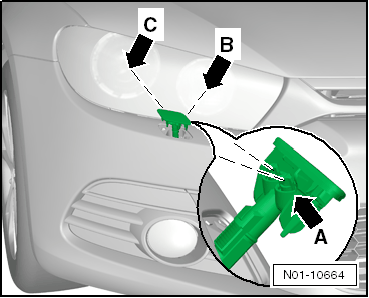

The spray must hit the headlamp glass directly in the center -B- and -C-.
If the spray pattern differs from the specification, perform a repair.
NOTE:
The test diagram is also for vehicles with Halogen headlamps.
