Entry Radio System Overview

WARNING: This page is about a different variant/trim than selected.

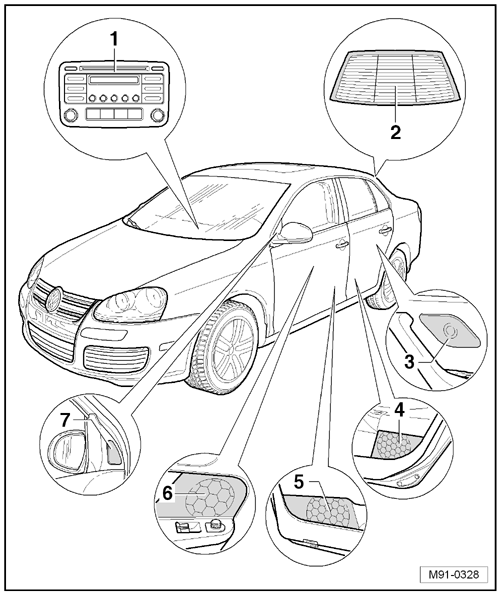

Fig 1: Identifying Entry Radio System - "Sound System", Component Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Radio
- Connectors, refer to CONNECTORS OVERVIEW .
- Removing and installing, refer to ENTRY .
Antenna -R11-
- For the antenna on the Wagon, refer to ANTENNA SYSTEMS .
Rear Treble Speaker
- Inside the left and right rear doors.
- Speaker systems, refer to TREBLE SPEAKER, REAR .
Rear Bass Speaker
- Inside the left and right rear doors.
- Speaker systems, refer to BASS, REAR .
Front Bass Speaker
- Inside the left and right front doors.
- Speaker systems, refer to BASS, FRONT .
Front Midrange Speaker
- Inside the left and right front doors.
- Speaker systems, refer to MID-RANGE, FRONT .
Front Treble Speaker
- Inside the triangular mirror cover on left and right front doors.
- Speaker systems, refer to TREBLE, FRONT IN MIRROR TRIANGLE .
