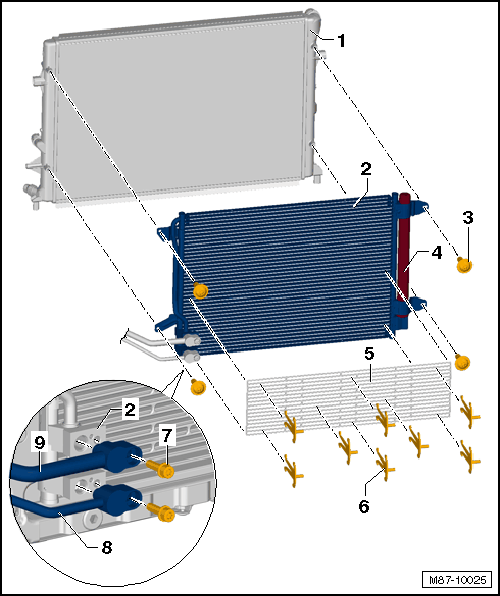

Condenser Overview
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Radiator
- Removing and installing. Refer to RADIATOR (CVCA, CJAA) , RADIATOR (CPLA, CPPA, CPKA, CPRA) , RADIATOR (CCTA, CBFA) or RADIATOR (CBTA, CBUA) .
- On vehicles with a Diesel engine, the condenser is located between the coolant cooler and the charge air cooler condenser.
- Condenser with Dryer Cartridge
- Condenser, removing and installing. Refer to CONDENSER .
- Dryer cartridge, removing and installing. Refer to DRYER CARTRIDGE .
- Bolts
- Securing the condenser to the coolant cooler or the charge air cooler
- Tightening specification 5 Nm
- Dryer Cartridge
- Removing and Installing. Refer to DRYER CARTRIDGE .
- Grille
- Protects the condenser from the stone chips and debris
- Clip
- Clip for the protective grate
- Quantity: 8
- Bolts
- Refrigerant line connections to the condenser
- Tightening specification 12 Nm
- Refrigerant Line
- High pressure line
- Refrigerant Line
- Low pressure line
