Alternator: Specifications

Generator Tightening Specifications


Always follow the tightening sequence to prevent damaging the cylinder block and the auxiliary component bracket.

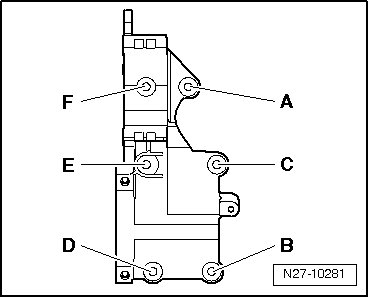

Tightening Sequence For The Accessories Bracket On The Cylinder Block





Procedure

- Position the accessories bracket on the cylinder block.

• Insert all bolts before tightening to the specification.

- Tighten the bolts on the auxiliary component bracket in the following sequence:

A Cylinder collar bolt, M10x45, 40 Nm, alignment bore
B Cylinder collar bolt, M10x45, 40 Nm
C Cylinder collar bolt, M10x45, 40 Nm
D Cylinder collar bolt, M10x45, 40 Nm
E Cylinder collar bolt, M10x45, 40 Nm
F Cylinder collar bolt, M10x45, 40 Nm
